Feature:
Supports 103.1 / 112Gbps aggregate bit rates
Single 3.3V Power Supply and Industry Lowest Power dissipation
Up to 100m transmission on MMF OM4 and 2/10/20/0/40km over SMF.
Hot-Pluggable QSFP Footprint
Class 1 FDA and IEC60825-1 Laser Safety Compliant
RoHS6 Compliant
Operating Case Temperature Standard: -5~+75C
Compliant with QSFP MSA Specification
I2C interface with integrated Digital Diagnostic Monitoring
4x25G electrical interface
Application:
High-speed interconnects within and between switches, routers and transport equipment
Server-Server Clusters, Super-computing interconnections
Proprietary backplanes
Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane
100GBASE-SR4
100GBASE-LR4
100GBASE-ER4
CWDM4
PSM4

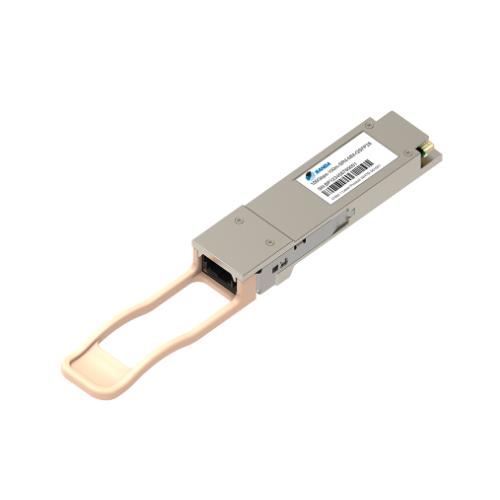

100G QSFP28
Part number | Data Rate | Fiber | Source | Reach | Connector | Connector |
SD-100G-SR4 | 100Gb/s | 850nm | MM | VCSEL | 100m | MPO |
SD-100G-CWDM4 | 100Gb/s | 1271~1331nm | SM | CWDM DFB | 2km | LC |
SD-100G-PSM4 | 100Gb/s | 1310nm | SM | CWDM DFB | 2km | MPO |
SD-100G-LR4 | 100Gb/s | 1294~1310nm | SM | LWDM DFB | 10km | LC |
SD-100G-ER4 Lite | 100Gb/s | 1294~1310nm | SM | LWDM DFB | 30km | LC |
SD-100G-ER4 | 100Gb/s | 1294~1310nm | SM | LWDM DFB | 40km | LC |
SD-100G-ZR4 | 100Gb/s | 1294~1310nm | SM | LWDM DFB | 80km | LC |
