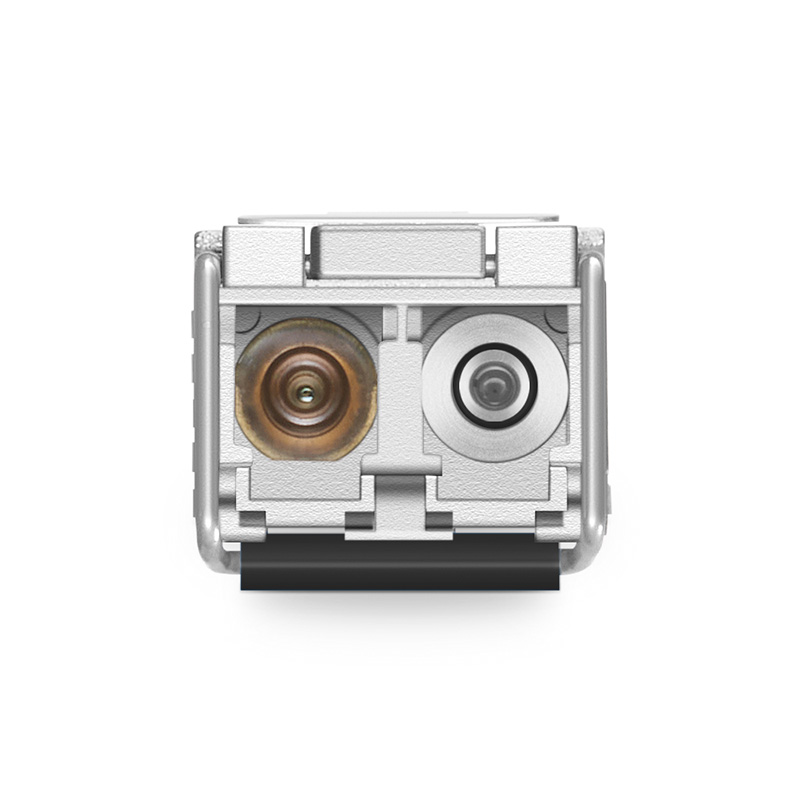

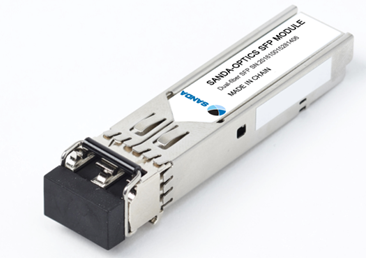

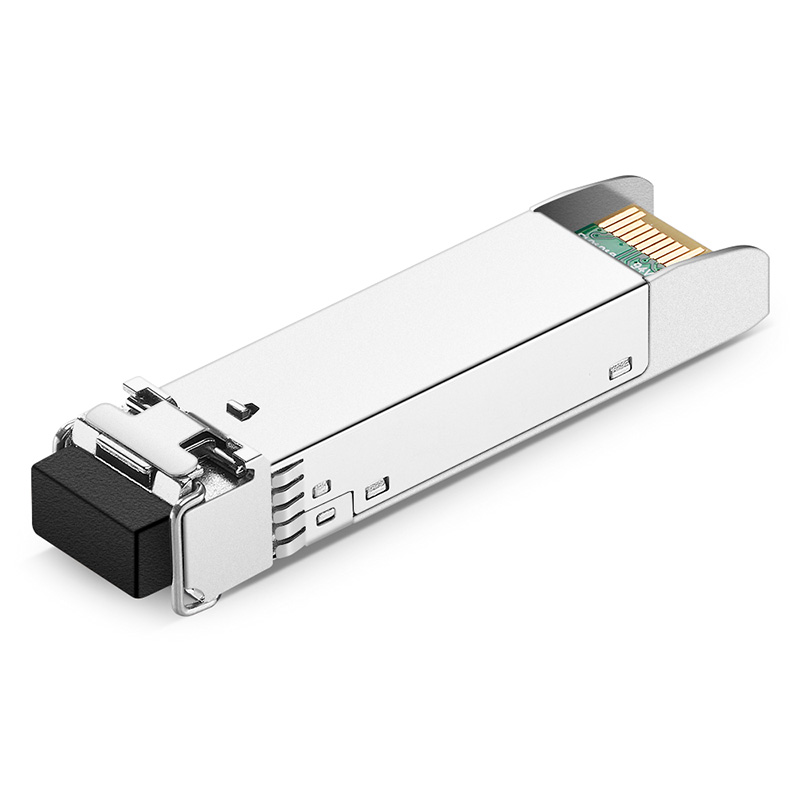

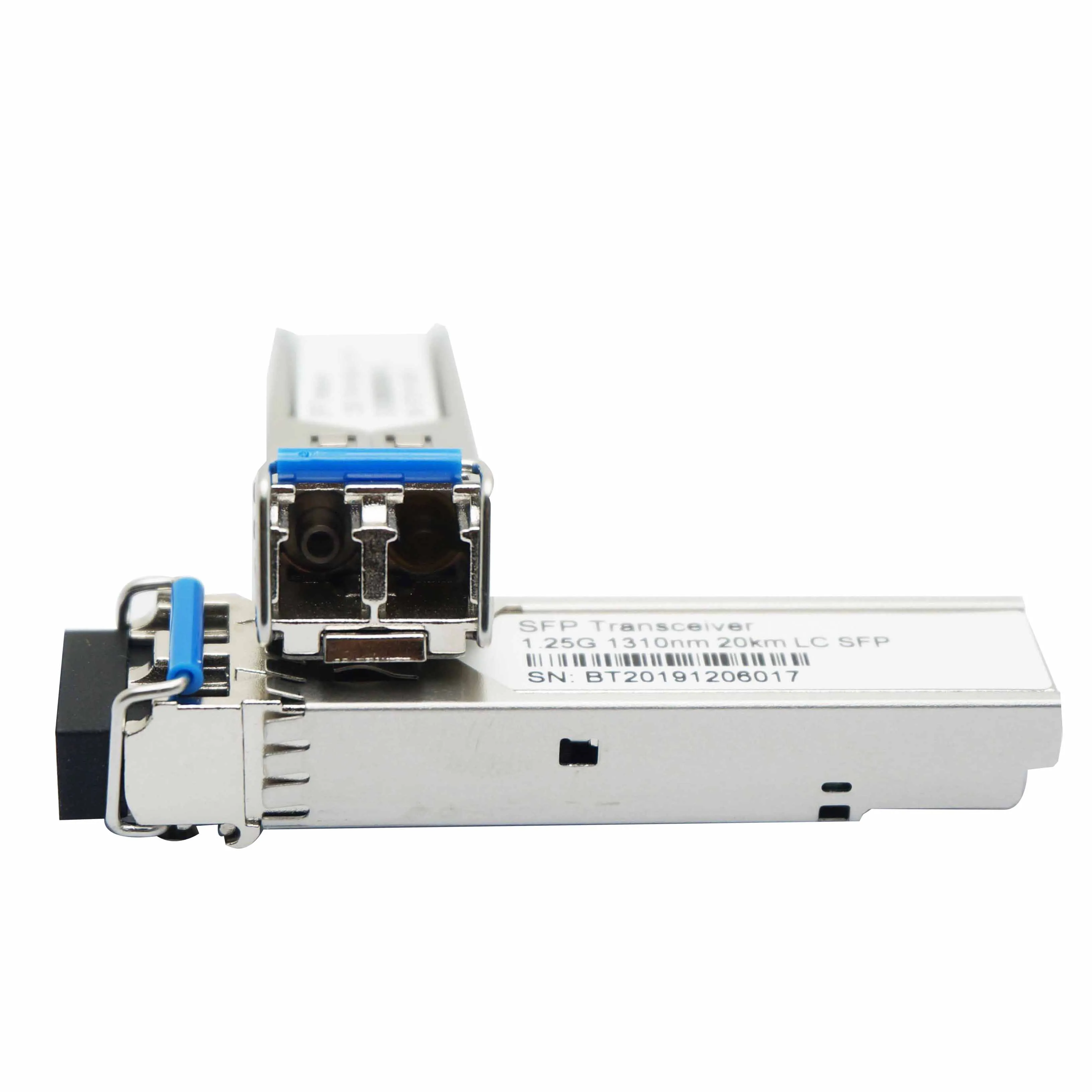

3Gbps Video SFP Optical Transceiver
SMPTE 297-2006 Compatible
Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic functions available through the I2C interface
+3.3V single power supply Operating case temperature: 0°C to 70 °C
Product Name | Type | Data Rate | Wavelength | Reach | Temperature | Connector |
3G-SDI SFP serials | ||||||
3G-SDI SFP | MMF Duplex | 2.97Gbps | 850 | 0.2KM | 0-70C | 2LC |
3G-SDI SFP | MMF Duplex | 2.97Gbps | 1310nm | 0.3KM | 0-70C | 2LC |
3G-SDI SFP | SMF Duplex | 2.97Gbps | 1310nm or 1550nm | 2KM/20KM/40km/80KM | 0-70C | 2LC |
3G 1Tx or 2TX | SMF Tx only | 2.97Gbps | 1310nm or 1550nm | 2KM/20KM/40km/80KM | 0-70C | 1LC/2LC |
3G 1Rx or 2RX | SMF Rx only | 2.97Gbps | / | 2KM/20KM/40km/80KM | 0-70C | 1LC/2LC |
3G-SDI CWDM SFP serial | ||||||
3G-SDI CWDM SFP | SMF Duplex | 2.97Gbps | 1270~1430nm | 20KM/40KM/60KM | 0-70C | 2LC |
3G-SDI CWDM SFP | SMF Duplex | 2.97Gbps | 1450~1610nm | 20KM/40KM/60KM | 0-70C | 2LC |
3G 1TX or 2TX | SMF Tx only | 2.97Gbps | 1270~1430nm | 20KM/40KM/60KM | 0-70C | 1LC/2LC |
3G 1RX or 2RX | SMF Rx only | 2.97Gbps | 1450~1610nm | 20KM/40KM/60KM | 0-70C | 1LC/2LC |
3G-SDI CWDM SFP BIDI serial | ||||||
3G CWDM BIDI SFP | SMF Bidi | 2.97Gbps | 1310nm/1490nm | 20KM | 0-70C | 1LC |
3G CWDM BIDI SFP | SMF Bidi | 2.97Gbps | 1490nm/1310nm | 20KM | 0-70C | 1LC |
3G CWDM BIDI SFP | SMF Bidi | 2.97Gbps | 1550nm/1490nm | 20KM/40KM | 0-70C | 1LC |
3G CWDM BIDI SFP | SMF Bidi | 2.97Gbps | 1490nm/1550nm | 20KM/40KM | 0-70C | 1LC |
