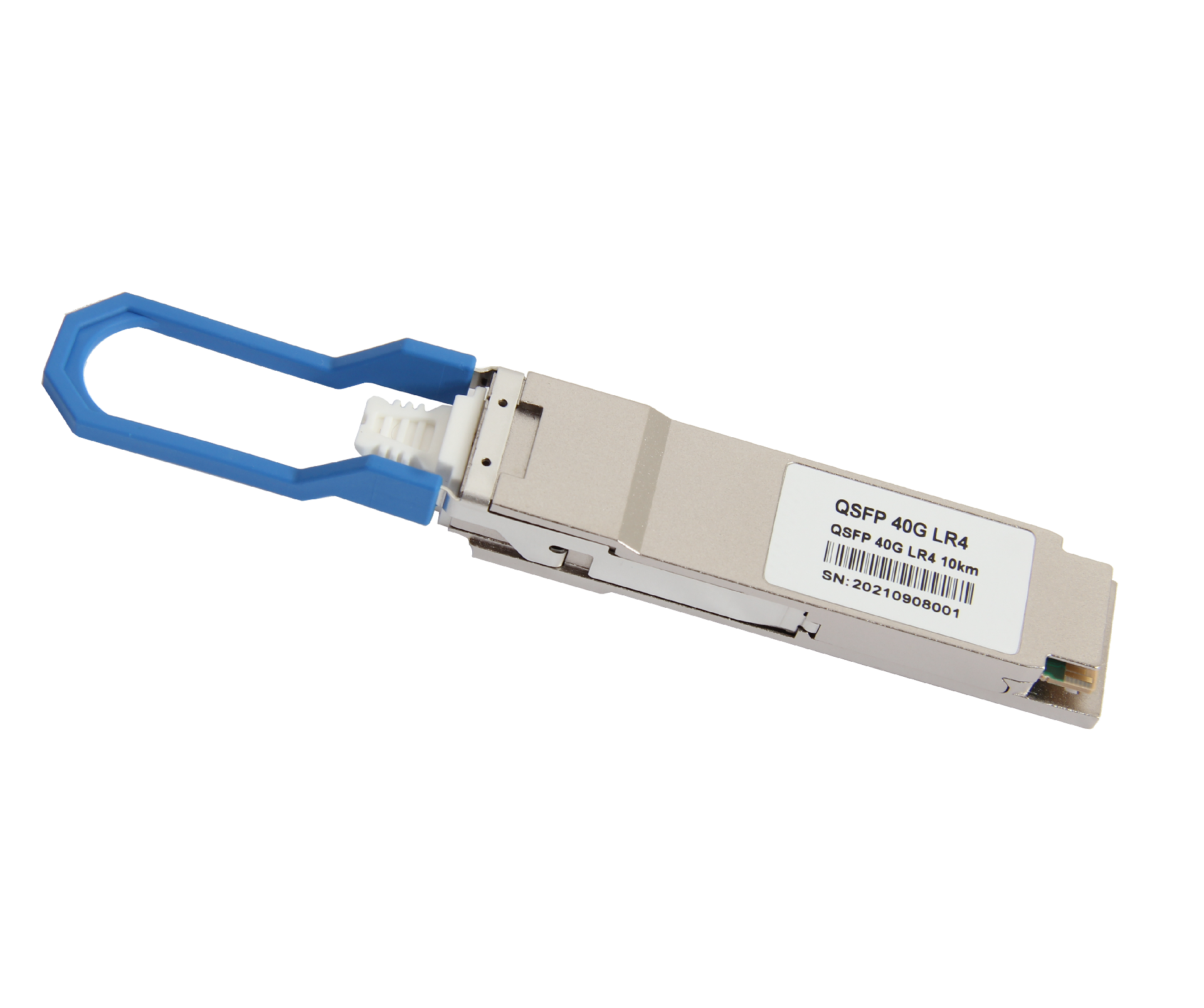

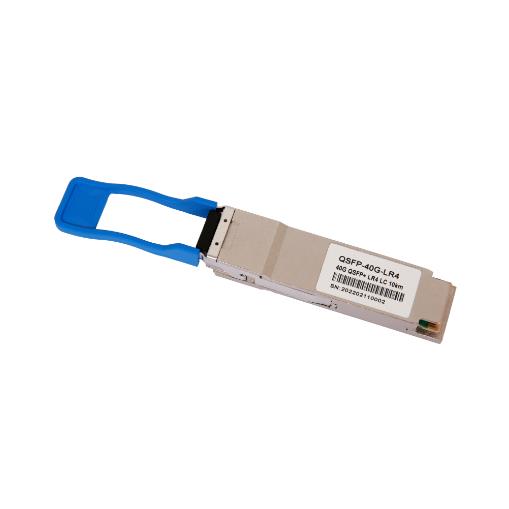

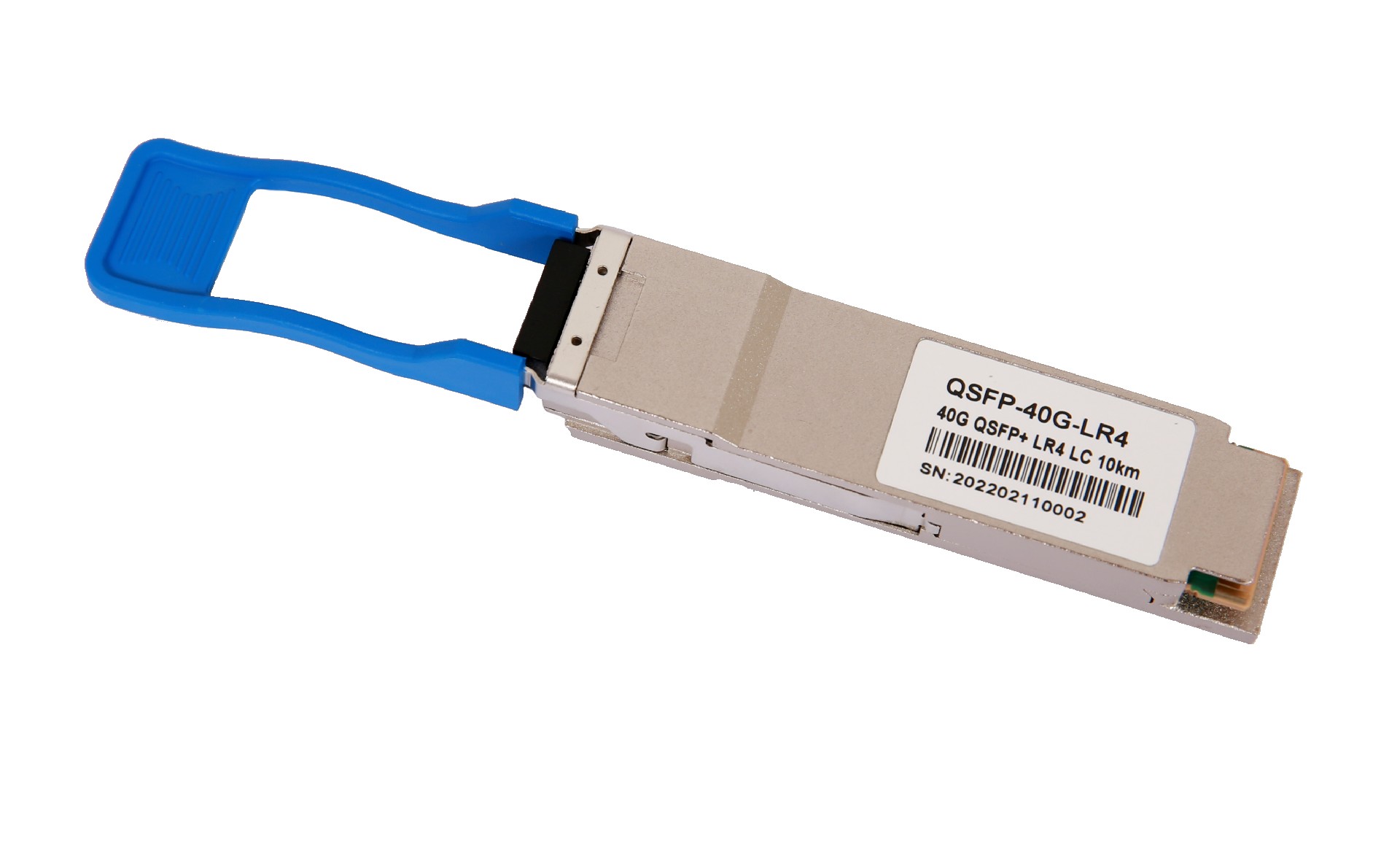

40G QSFP+
• Uncooled 4x10Gb/s CWDM transmitter
• Up to 10.3125Gbps data rate per wavelength
• QSFP+ MSA compliant
• Duplex LC connector
• Built-in digital diagnostic functions
• Up to 2km on SMF / Up to 10km on SMF
• Maximum 2.5W power consumption
• Operating temperature range:0℃ to 70℃
• XLPPI electrical interface
• Anti-sulphuration
Part number | Data Rate | Wavelength | Type | Source | Reach | Connector |
SD-40G-SR4 | 40G/s | 850nm | MM | VCSEL | 100m | MPO |
SD-40G-eSR4 | 40G/s | 850nm | MM | VCSEL | 300m | MPO |
SD-40G-LR4 | 40G/s | 1271~1331nm | SM | CWDM DFB | 10km | LC |
SD-40G-PSM4 | 40G/s | 1310nm | SM | LWDM DFB | 10km | MPO |
SD-40G-ER4 | 40G/s | 1271~1331nm | SM | CWDM DFB | 40km | LC |
