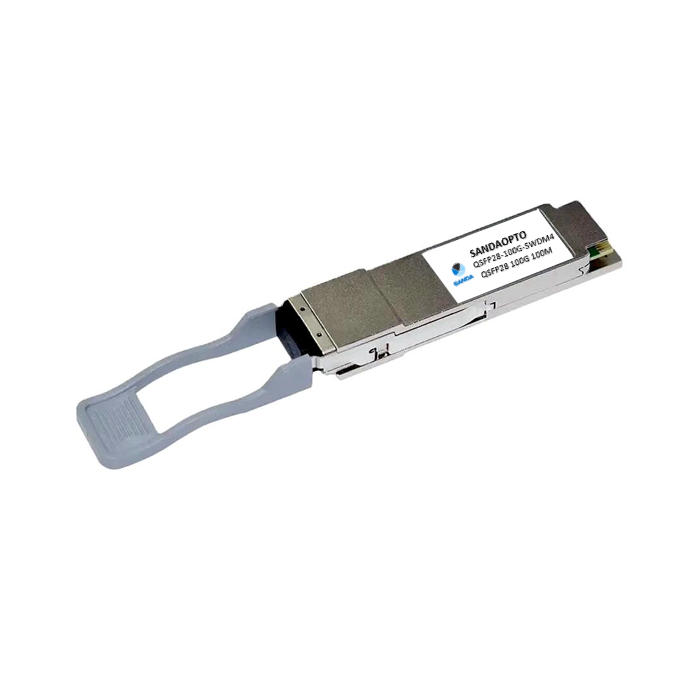

QSFP28-100G-SWDM4
Hot-pluggable QSFP28 form factor
Maximum link length of 75m/100m/150m on OM3/OM4/OM5 Duplex Multimode Fiber (MMF
Supports 103.1Gb/s aggregate bit rate
Duplex LC receptacles
Power dissipation < 3.5W
VCSEL-based transmitter
RoHS-6 compliant
Single 3.3V power supply
Commercial case temperature range of 0℃~70℃
I2C management interface
| Product PN | Interfaces | Fibere | Reach | Data Rate | Encoding | Form Factore | Temperature |
| SD-100G-SWDM4 | LC | OM3 MMF | 100m | 100G | NRZ | QSFP28 SWDM4 | 0~70°C |
| Compatible Brand | QSFP28-100G-SWDM4 | Brand | SANDAOPTO |
| Package | QSFP28 | Data rate | 100Gbps |
| Wavelength | 850/890/910/940nm | Max Distance | 100m |
| Conn Type | Duplex LC | Fiber mode Type | Multimode |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| Tx power | -7.5~2dBm | Sensitivity | <-9.5dBm |
| Warranty Period | 3 years | Overload | <3.2dbm |
| Power Consumption | ≤3.5W | Extinction Ratio | >3 |
| DDM/DOM | support | Temperature Range | 0~70°C |
| MSA Standard | SWDM MSA, QSFP28 MSA, IEEE802.3bm CAUI-4 | Modulation (Optic) | |
| CDR(W/O) | support |
