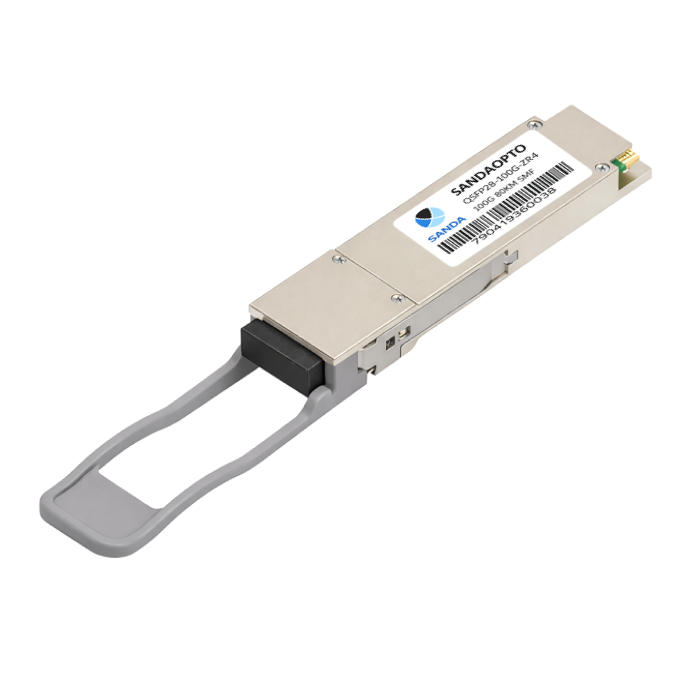

QSFP28-100G-ZR4
Supports 100GBASE 100GE
Lane bit rate 25.78 Gb/s 100GE
Up to 80km transmission on SMF
LAN WDM laser and PIN receiver with SOA
Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS
High speed I/O electrical interface (CAUI-4)
I2C interface with integrated Digital Diagnostic monitoring
Typical power consumption 6.5 W
Single +3.3V power supply
Operating case temperature (C:0 to 70 °C)
| Product PN | Interfaces | Fibere | Reach | Data Rate | Encoding | Form Factore | Temperature |
| SD-100G-ZR4 | LC | SMF | 80Km | 100G | NRZ | QSFP28 ZR4 | 0~70°C |
| Compatible Brand | QSFP28-100G-ZR4 | support | SANDAOPTO |
| Package | QSFP28 | Data rate | 100gbps |
| Wavelength | 1310nm | Max Distance | 80km |
| Conn Type | Duplex LC | Fiber mode Type | single mode |
| Transmitter Type | EML | Receiver Type | SOA+PIN |
| Tx power | 2.0~6.5dBm | Sensitivity | -28dBm |
| Warranty Period | 3 years | Overload | <-7dBm |
| Power Consumption | ≤7W | Extinction Ratio | >6dB |
| DDM/DOM | support | Temperature Range | 0~70°C |
| MSA Standard | IEEE 802.3ba, QSFP28 MSA | Modulation (Optic) | NRZ |
| CDR(W/O) | support | FEC inside (W/O) | support |
