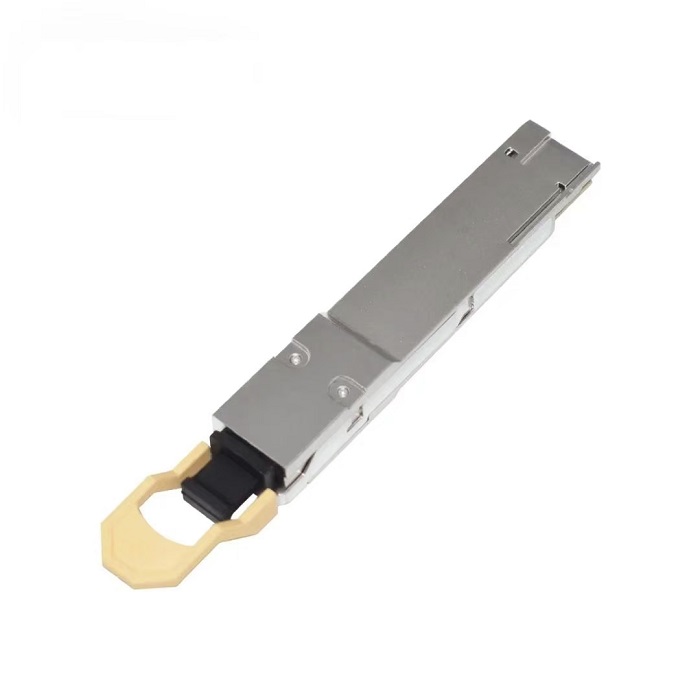

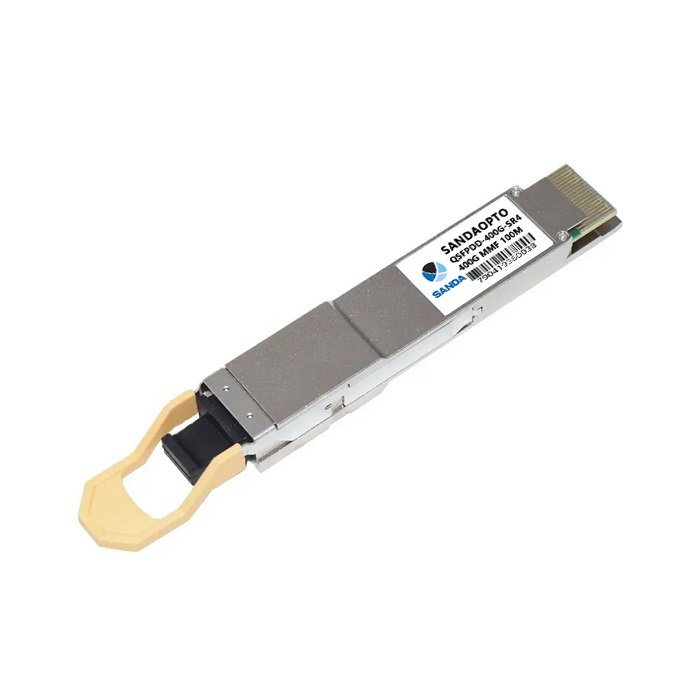

QSFPDD-400G-SR4
4x100G PAM4 850nm transmitter based on VCSEL
Compliant with IEEE 802.3db standard
Up to 100m on OM4 multimode
QSFP-DD MSA standard
Single channel 3.3V power supply
Fiber optic connection achieved through industry standard MPO/MTP terminated fiber optic ribbon
Compliant with RoHS environmental standards (lead-free)
Operating temperature: 0~+70 ° C
| Product PN | Interfaces | Fiber | Reach | Data Rate | Encoding | Form Factore | Temperature |
| QSFPDD-400G-SR4 | MPO12/APC | OM4 MMF | 100M | 4x100Gbps | PAM4 | QSFP-DD | C |
| Product PN | QSFPDD-400G-SR4 | Brand | SANDAOPTO |
| Package | QSFP-DD | Data rate | 400Gbps |
| Wavelength | 850nm | Max Distance | 100M |
| Conn Type | MPO-12/APC | Fiber mode Type | multimode |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| Tx power | -4.6~4dBm | Sensitivity | -6.3dBm |
| MSA Standard | IEEE 802.3bs QSFP-DD MSA IEEE 802.3db CMIS rev 5.2 | Overload | 4dBm |
| Power Consumption | ≤8W | Extinction Ratio | >3dBm |
| DDM/DOM | support | Temperature Range | 0~70°C |
| Modulation (Electric) | PAW4 | Modulation (Optic) | 4x 106.25Gzhib |
| Warranty Period | 3 years | FEC inside (W/O) | support |
