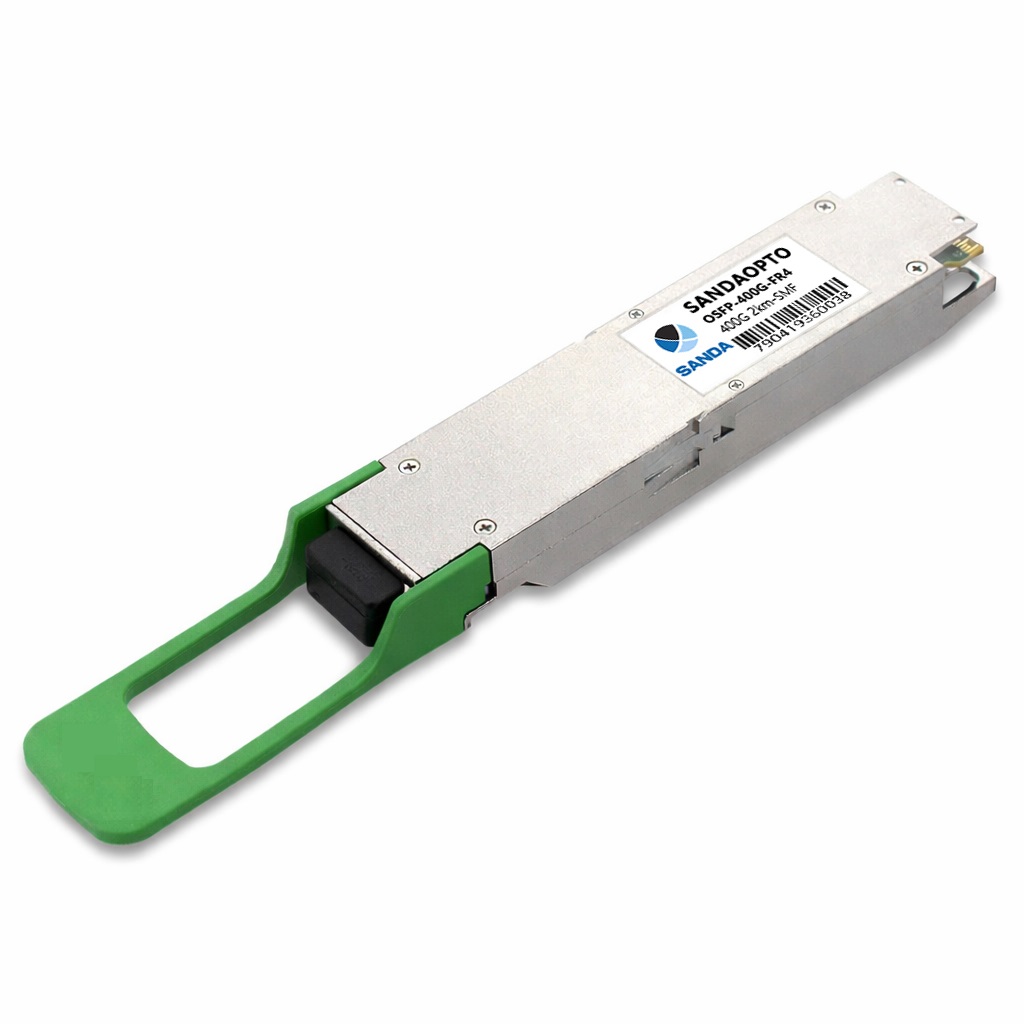

OSFP-400G-FR4
Data rate per channel 106.25Gbps (PAM4)
The maximum link length on single-mode fiber (SMF) is 2km
4 × 100G PAM4 EML CWDM laser
Working temperature range: 0~+70 ℃
Duplex LC connector
Maximum power consumption 10W
Single channel 3.3V power supply
RoHS 6.0
Hot-pluggable OSFP form factor
| Product | OSFP-400G-FR4 |
| Description | 100% OEM compatible 400GBase-FR4 OSFP transceiver |
| Form Factor | OSFP |
| Max Data rate | 400Gbps |
| Fiber type | SMF |
| Max Distance | 2KM |
| Wavelength | 1271nm,1291nm,1311nm,1331nm |
| Transmitter and ReceiverType | CWDM EML, PIN |
| Connector | Duplex LC/UPC |
| Tx power & Sensitivity | TX power:-3.2~4.4dBm Sens<-7.3dBm Overload:4.4dbm |
| Extinction Ratio | 3.5dBM |
| Power Consumption | 10W |
| DDMI | Supported |
| Temperature Range | 0~70°C |
| Modulation | Electric:8x50G-PAM4, Optic: 4x100G-PAM4 |
| Protocols: | OSFP MSA 5.1,CMIS 4.0,IEEE 802.3cu,IEEE 802.3bs |
