Overview

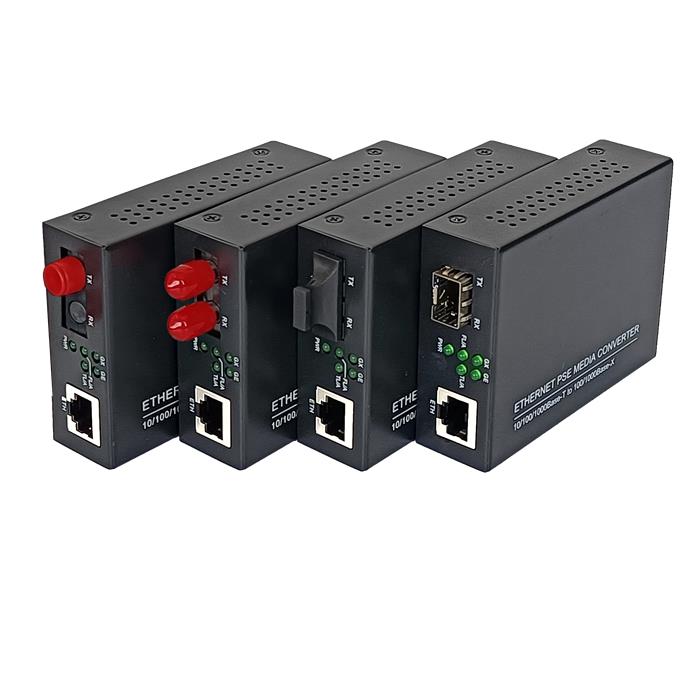

SD2100 is Gigabit Ethernet Media Converters, which extend the 10,100 and 1000Mbbps twisted-pair network segments up to 120km over fiber technology. Supporting 10/100/1000Mbps auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, SFP/SC/FC/ST interface optional, and also SFP Slot support 1.25G/155M SFP modules with auto-negotiation function
Features
· Copper port support auto-negotiation, auto-MDI/MDI-X
· SFP port provides 1.25G/155M auto-negotiation
· Full duplex and Half duplex back pressure auto-negotiation
· Link fa
· 16K Jumbo Frame
· LED indicators for working status
· Wide range power input
· ESD,surge protection
· IP30 enclosure
· Chassis Mounted, Wall-mounted Installation with optional kits
· Low power consumption, lead-free process
Specification
Model | SD2100 |
Performance | |
Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x |
Processing type | Store and Forward |
MAC address | 2k |
Buffer Space | 718k |
Flow Control | support |
Jumbo Frame | 16k bytes |
Interface | |
Copper Port | 10/100/1000M Auto-negotiation, RJ45 auto-MDI/MDI-X Cat5/Cat5e/Cat6, ≤100m |
Fiber Port | 1.25G/155M SFP, 1.25G SC/FC/ST optional OS1/OS2 ≤120km; OM1/OM2 ≤550m |
Power Port | DC socket, φ2.5mm |
LED indicators | PWR, GX, GE,FL/A,TL/A |
Dip-switch | LFP, Flow control, Jumbo frame, Forced 100M |
Electrical characteristics | |
Input Voltage | 5-12Vdc |
Power Consumption | <3W |
Physical characteristics | |
Enclosure | Metal IP30 |
Installation | Rack mounted, Wall-mounted |
Dimension | 94x71x26mm |
Environment | |
Working Temperature | -20~60ºC |
Storage Temperature | -40~85ºC |
Relative Humidity | 5%~95% (no condensation ) |
Power Adaptor | |
Input Voltage | 100-240Vac 50/60Hz |
Output | 5Vdc 1A |
Order Information
Model | Description |
SD2100-SFP | 10/100/1000M, SFP slot |
SD2100-M05 | 10/100/1000M, MM 850nm SC 550m |
SD2100-S20 | 10/100/1000M, SM 1310nm SC 20km |
SD2100-A20 | 10/100/1000M, SM TX1310/RX1550nm SC 20km |
SD2100-B20 | 10/100/1000M, SM TX1550/RX1310nm SC 20km |
FC/ST available; 40/60/80/120km available. | |
Related Products
Model | Description |
MCR-14 | 19” 2U, 14-slot rack with dual power supply for SD2100 series only. |
TK10 | Wall-mounted kits, 87x12x8.2mm, hole L=73mm φ3.0mm |
