Features:
3.3V or 5Vpower supply VCSEL/FP Laser Diode Transmitter
Up to 2 Km on 62.5/125um MMF Up to 100 Km on 9/125um SMF
3.3V or 5Vpower supply SC/ST/FC Simplex optical interface
Class 1 Laser International Safety Standard IEC825 Compliant
Operating case temperature range (Standard: 0 to+70°C) Or (industrial: -40°C to +85°C)

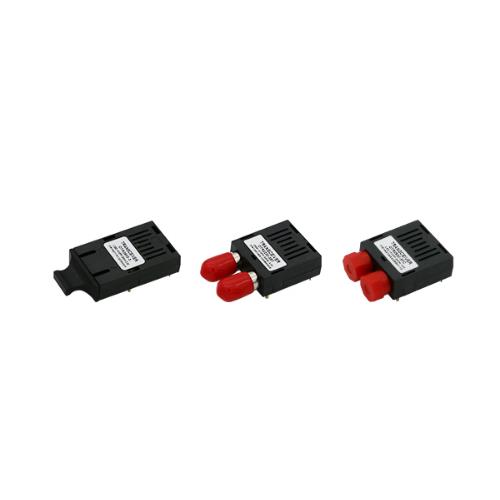

1X9 Bidi 1.25G - Table
Package | Part number | Fiber | Data | Wavelength | Source | Distance | Temperature | Connector |
1x9 | SD3TRBD-S35FP-20 | SMF | 1.25Gbps | 1310nm/1550nm | FP/PIN | 20km | 0~70° / -40~85° | FC/SC/ST |
1x9 | SD3TRBD-S53FP-20 | SMF | 1.25Gbps | 1550nm/1310nm | DFB/PIN | 20km | 0~70° / -40~85° | FC/SC/ST |
1x9 | SD3TRBD-S35DP-40 | SMF | 1.25Gbps | 1310nm/1550nm | DFB/PIN | 40km | 0~70° / -40~85° | FC/SC/ST |
1x9 | SD3TRBD-S53DP-40 | SMF | 1.25Gbps | 1550/1310nm | DFB/PIN | 40km | 0~70° / -40~85° | FC/SC/ST |
1x9 | SD3TRBD-S35DP-60 | SMF | 1.25Gbps | 1310nm/1550nm | DFB/PIN | 60km | 0~70° / -40~85° | FC/SC/ST |
1x9 | SD3TRBD-S53DP-60 | SMF | 1.25Gbps | 1550nm/1310nm | DFB/PIN | 60km | 0~70° / -40~85° | FC/SC/ST |
1x9 | SD3TRBD-S45DP-80 | SMF | 1.25Gbps | 1490nm/1550nm | DFB/PIN | 80km | 0~70° / -40~85° | FC/SC/ST |
1x9 | SD3TRBD-S54DP-80 | SMF | 1.25Gbps | 1550nm/1490nm | DFB/PIN | 80km | 0~70° / -40~85° | FC/SC/ST |
1x9 | SD3TRBD-S45DP-100 | SMF | 1.25Gbps | 1490nm/1550nm | DFB/PIN | 100km | 0~70° / -40~85° | FC/SC/ST |
1x9 | SD3TRBD-S54DP-100 | SMF | 1.25Gbps | 1550nm/1490nm | DFB/PIN | 100km | 0~70° / -40~85° | FC/SC/ST |
