Features:
3.3V or 5Vpower supply VCSEL/FP Laser Diode Transmitter
Up to 2 Km on 62.5/125um MMF Up to 40 Km on 9/125um SMF
3.3V or 5Vpower supply
SC/ST/FC duplex optical interface (LV)TTL Input /Output and LVTTL signal detect
Class 1 Laser International Safety Standard IEC825 Compliant
Operating case temperature range (Standard: 0 to+70°C) Or (industrial: -40°C to +85°C)
Application: RS232/RS485/RS422 receptacle fiber transmission / Other optic link

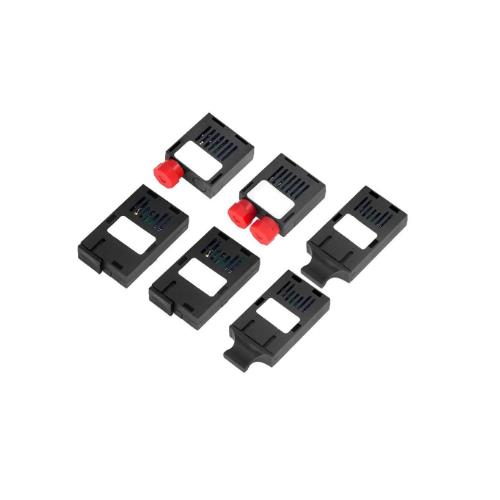

1X9 Duplex 0-10M - Table
Package | Part number | Data Rate | Wavelength | Fiber | Source | Reach | Connector | Temperature |
1x9 | SD6TR-S85VP-2 | 0-10M | 850nm | MMF | FP | 1km | FC/SC/ST | 0~70°/-40~85° |
1x9 | SD6TR-S31FP-2 | 0-10M | 1310nm | MMF | FP | 2km | FC/SC/ST | 0~70°/-40~85° |
1x9 | SD6TR-S31FP-20 | 0-10M | 1310nm | SMF | FP | 20km | FC/SC/ST | 0~70°/-40~85° |
1x9 | SD6TR-S31FP-40 | 0-10M | 1310nm | SMF | FP | 40km | FC/SC/ST | 0~70°/-40~85° |
Customised for customer
Package | Part number | Data Rate | Wavelength | Fiber | Source | Reach | Connector | Temperature | Remark |
1x9 | SD6TR-M31P-023RX | 0-10M | 1310 | MMF | FP | 10km | FC/SC/ST | 0~70°/-40~85° | Single-RXCustomised |
1x9 | SD6TR-M31F-023TX | 0-10M | 1310 | MMF | FP | 20km | FC/SC/ST | 0~70°/-40~85° | Single-TXCustomised |
